MP4303
View detailed images (4)

MP4303

SKU: MP4303

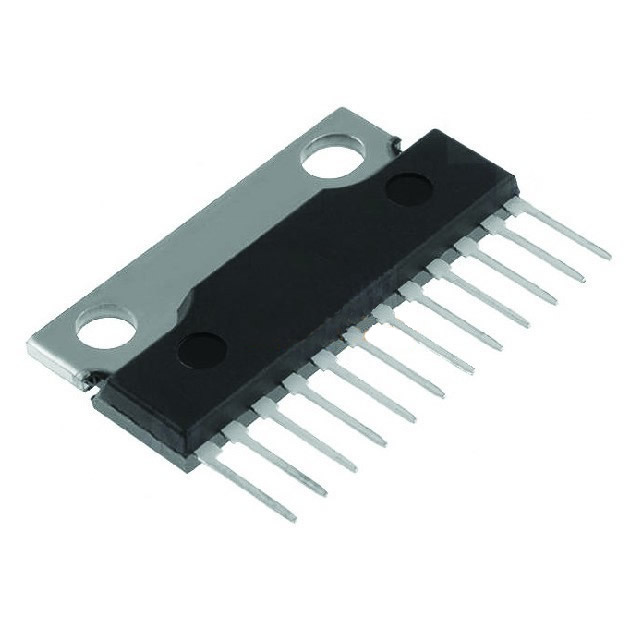

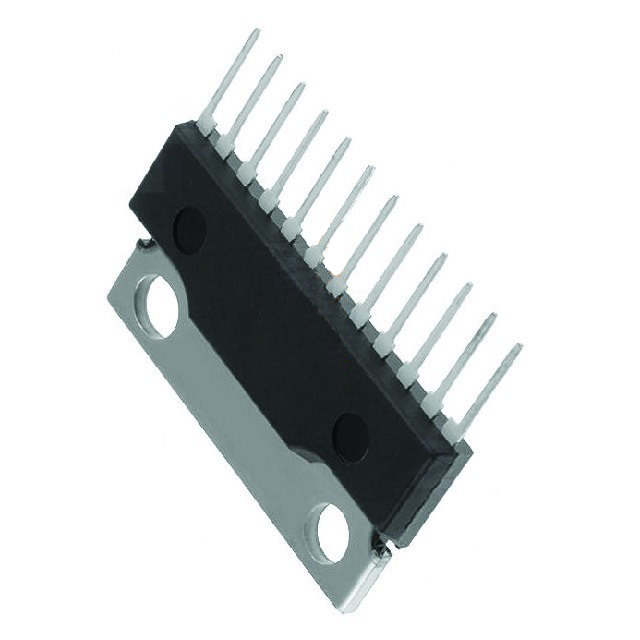

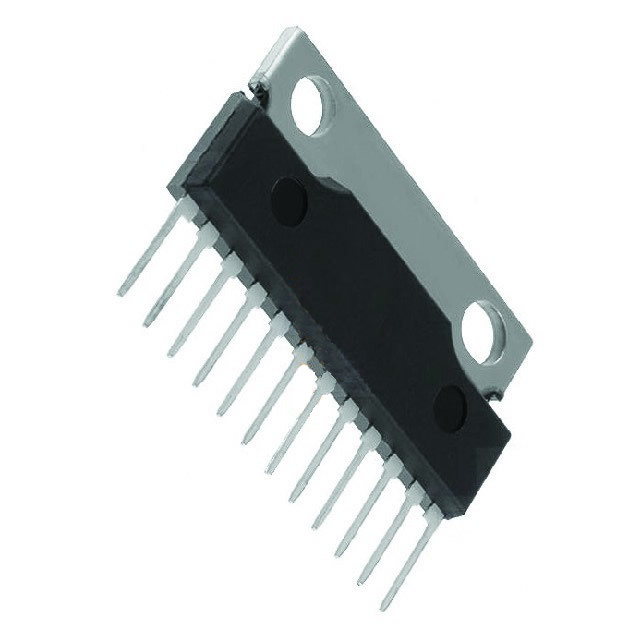

MP4303 Transistor Silicon NPN - CASE: SIP12 MAKE: Toshiba
Price: £11.99
+ VAT 20% for UK purchases
£11.99
Qty
+ VAT 20% for UK purchases
  • 17 pieces in 1-2 Days
  • More pieces shipped in 14 days
Datasheet
MP4303 Datasheet
Product specifications
Type Transistor Silicon NPN
Manufacturer Toshiba
Case SIP12
Polarity NPN
Maximum Collector Power Dissipation (Pc) 2.2 W
Maximum Collector-Base Voltage |Vcb| 120 V
Maximum Collector-Emitter Voltage |Vce| 100 V
Maximum Emitter-Base Voltage |Veb| 6 V
Maximum Collector Current |Ic max| 2 A
Max. Operating Junction Temperature (Tj) 150 °C
Collector Capacitance (Cc) 20 pF
Transition Frequency (ft): 100 MHz
Forward Current Transfer Ratio (hFE), MIN 1000
SKU 20690
