BD207

SKU: BD207

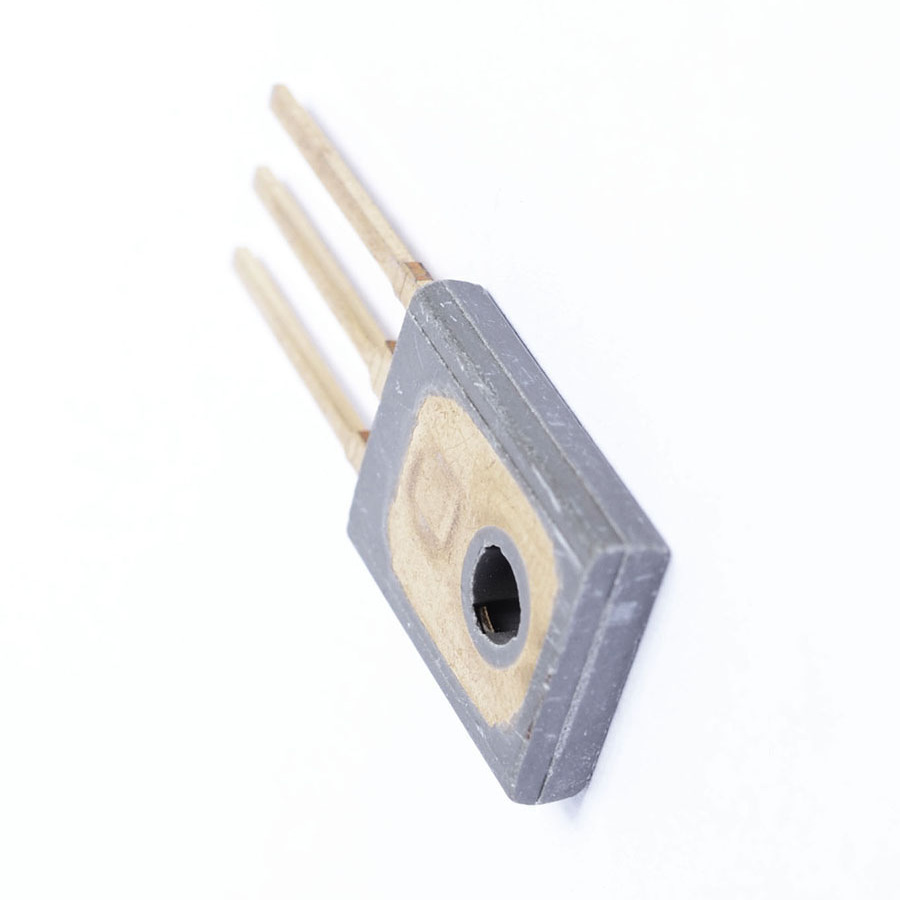

BD207 Transistor Silicon NPN - CASE: TO127 MAKE: Motorola
+ VAT 20% for UK purchases
Product specifications
Type Transistor Silicon NPN
Manufacturer Motorola Semiconductor
Case TO127
Vbr CBO 70
Vbr CEO 60
Max. PD (W) 90
Min hFE 15
Ic Max. (A) 10
@Ic (test) (A) 2.0
Icbo Max. @Vcb Max. (A) 1.0m
Polarity NPN
R(sat) (Û) 275m
Derate Above 25°C 720m
Trans. Freq (Hz) Min. 1.5M
Oper. Temp (°C) Max. 140
@VCE (V) 2.0
Pinout Equivalence Number 3-10
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 90 W
Maximum Collector-Base Voltage |Vcb| 70 V
Maximum Collector-Emitter Voltage |Vce| 60 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 10 A
Max. Operating Junction Temperature (Tj) 150 °C
Transition Frequency (ft): 1.5 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 135841
