2N3646
View detailed images (12)

2N3646

SKU: 2N3646

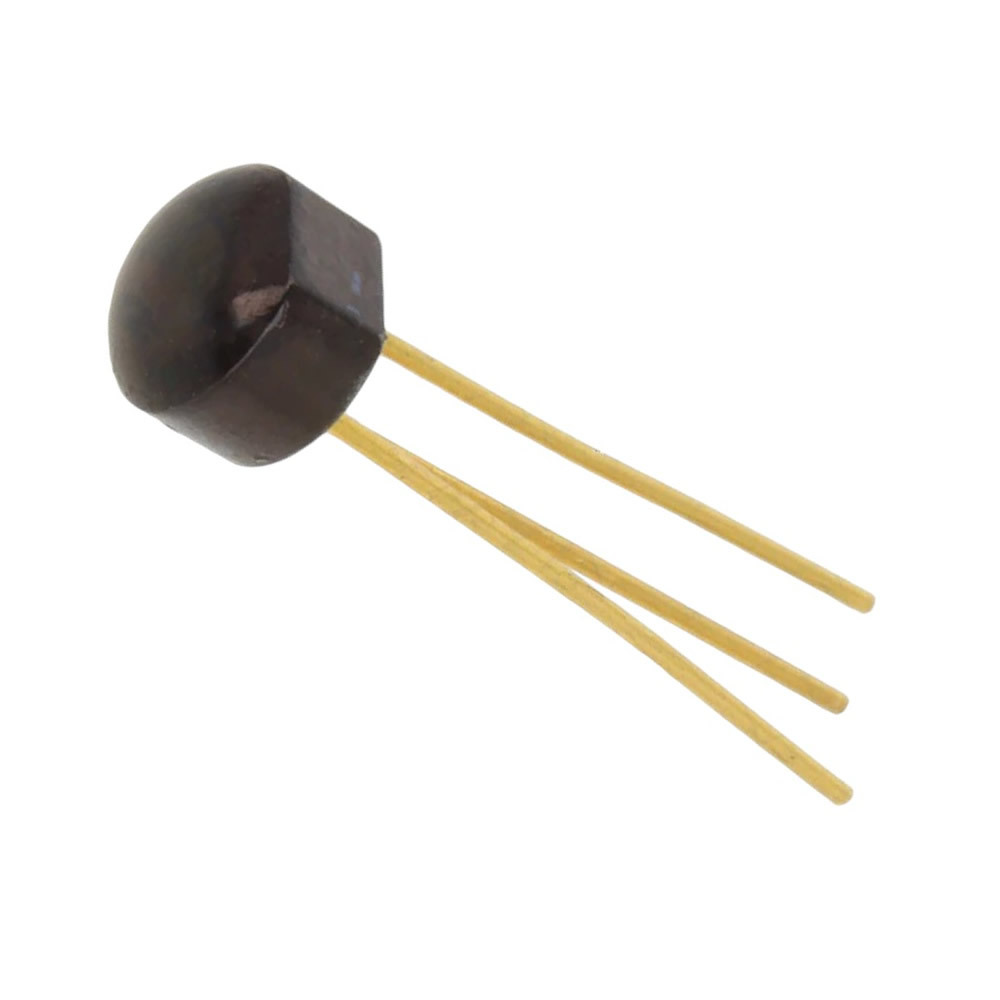

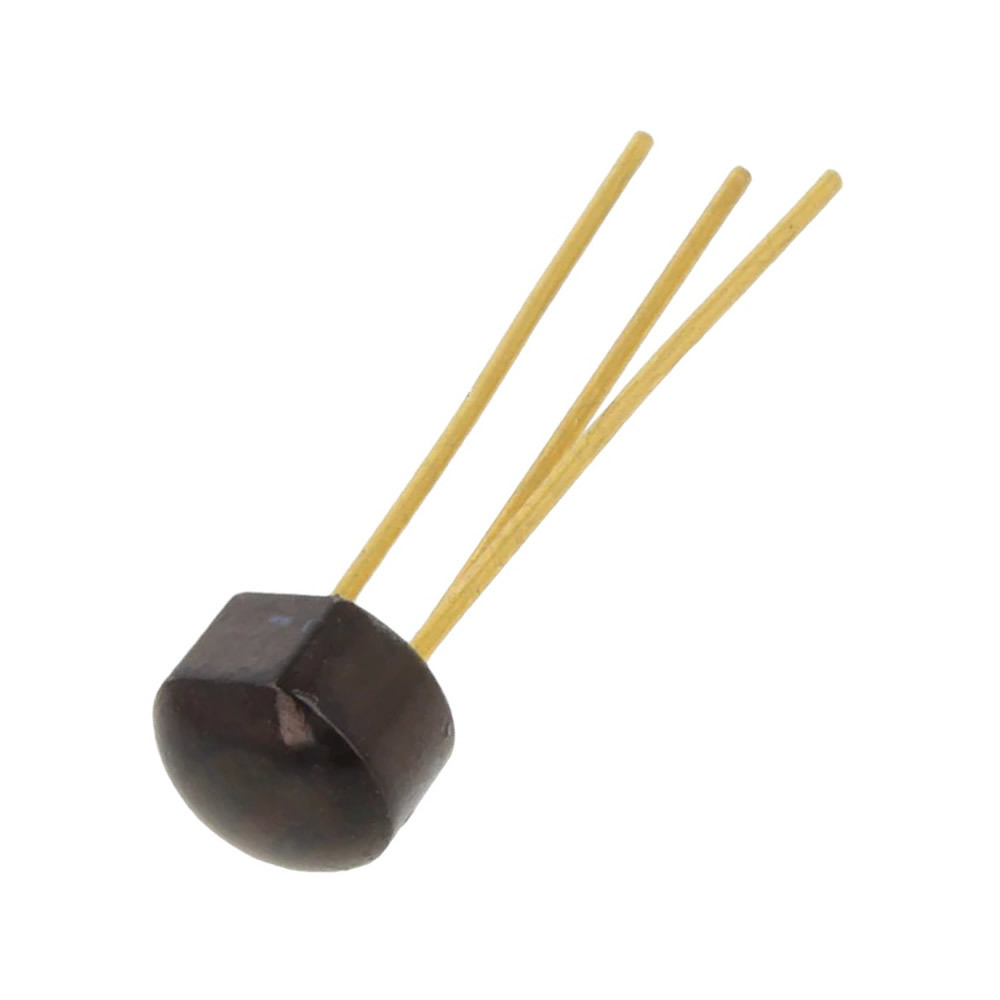

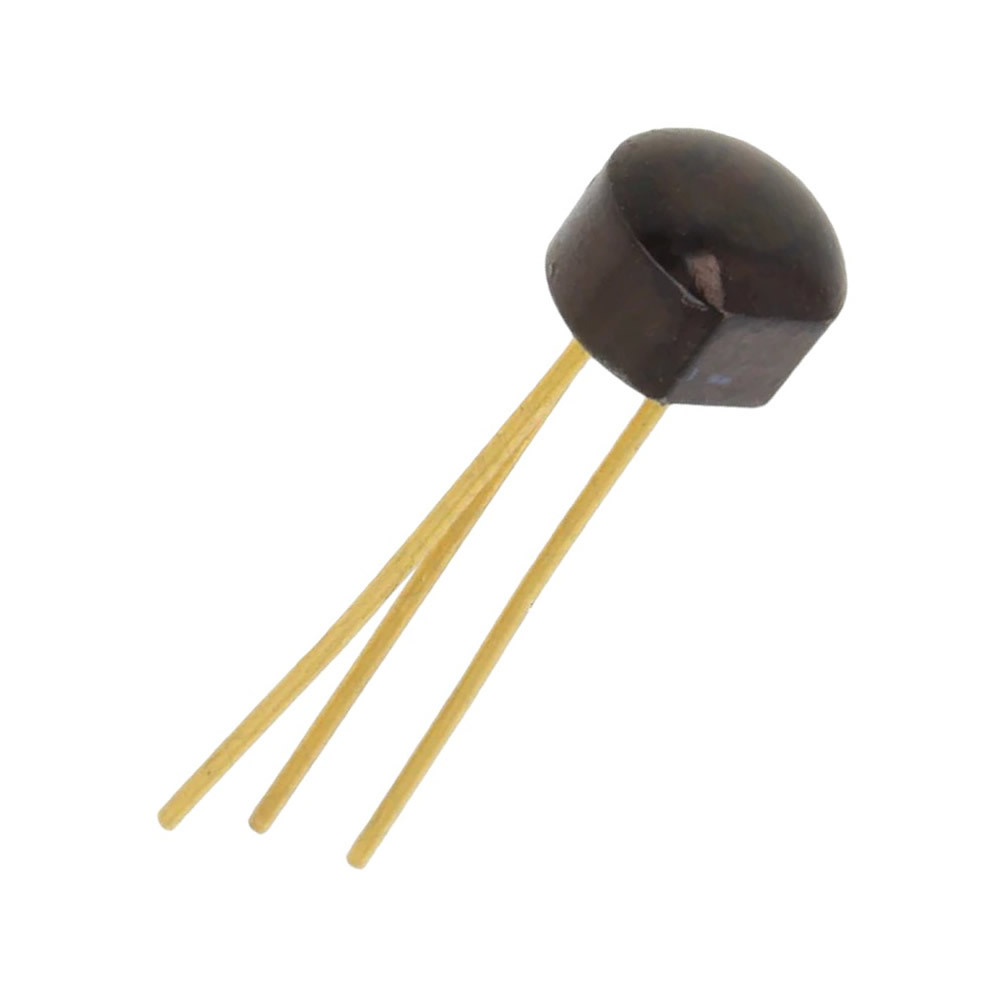

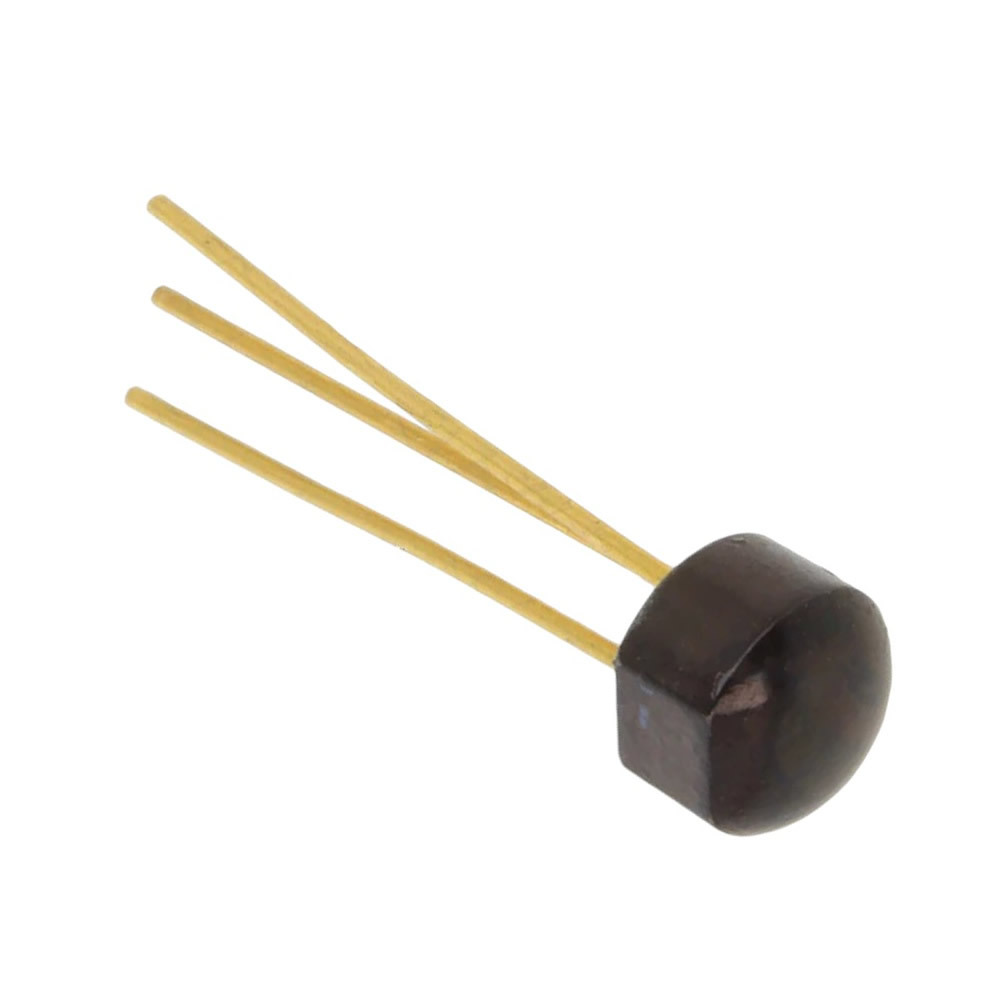

2N3646 Transistor Silicon NPN - CASE: TO106 MAKE: Fairchild Semiconductor
Price: £4.79
+ VAT 20% for UK purchases
£4.79
Qty
+ VAT 20% for UK purchases
  • 10 pieces in 1-2 Days
  • More pieces in 10-14 days
  • More pieces in 10-14 days
  • More pieces in 10-14 days
Product specifications
Type Transistor Silicon NPN
Manufacturer Fairchild Semiconductor
Case TO106
Vbr CBO 40
Vbr CEO 15
Max. PD (W) 200m
C(ob) (F) 5.0p
t(on) Delay (S) 10n
Derate (Amb) (W/°C) 2.0m
t(f) Max. (S) 15n
hfe 3.5
Ic Max. (A) 200m
Icbo Max. @Vcb Max. (A) 500n
Polarity NPN
Tr Max. (s) 15n
t(stor) Max. (S) 20n
@VCE (test) (V) 10
Oper. Temp (°C) Max. 125
@Ic (A) 30m
Pinout Equivalence Number 3-12
Surface Mounted Yes/No NO
Maximum Collector Power Dissipation (Pc) 0.2 W
Maximum Collector-Base Voltage |Vcb| 40 V
Maximum Collector-Emitter Voltage |Vce| 10 V
Maximum Emitter-Base Voltage |Veb| 5 V
Maximum Collector Current |Ic max| 0.5 A
Max. Operating Junction Temperature (Tj) 125 °C
Collector Capacitance (Cc) 5 pF
Transition Frequency (ft): 350 MHz
Forward Current Transfer Ratio (hFE), MIN 30
SKU 115086
